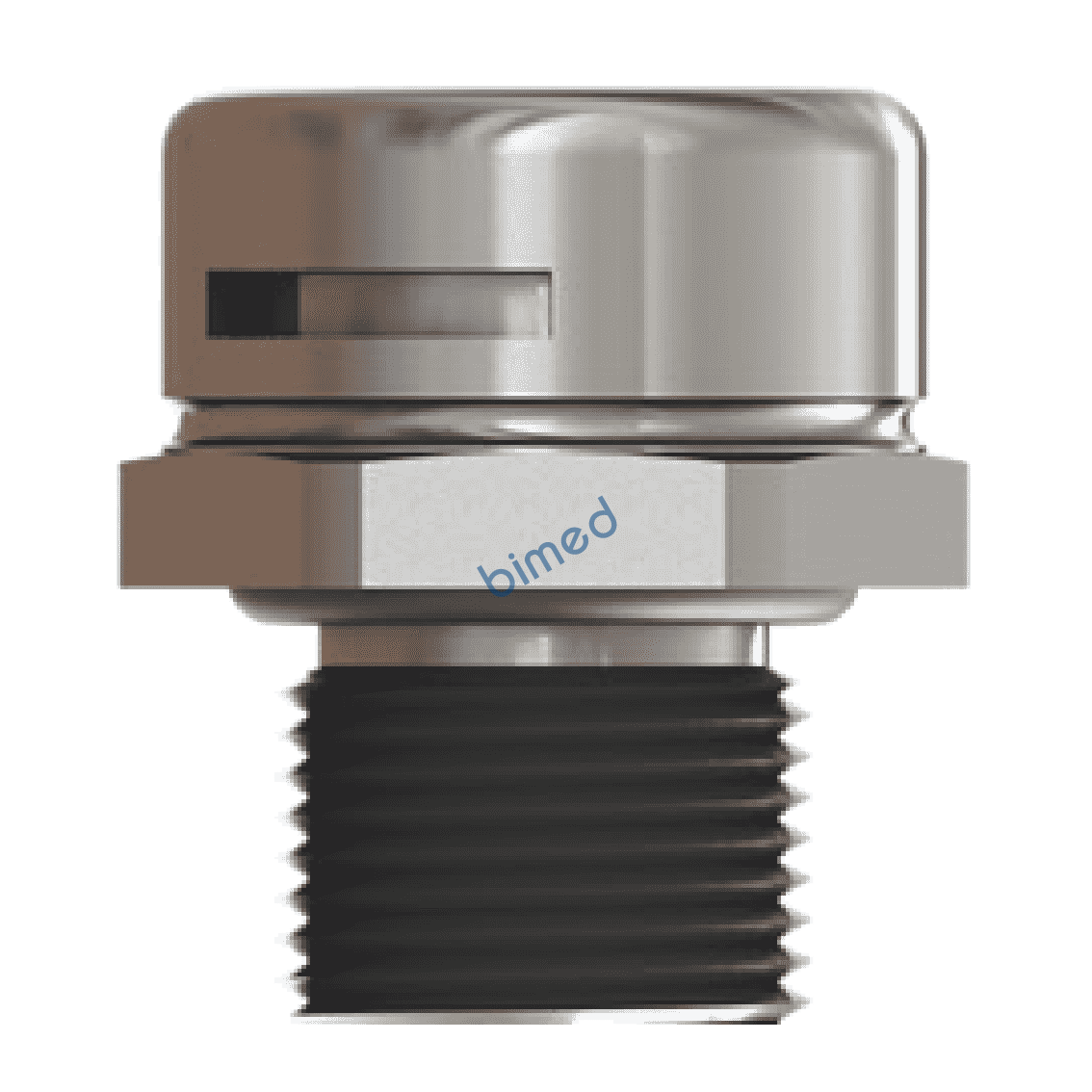

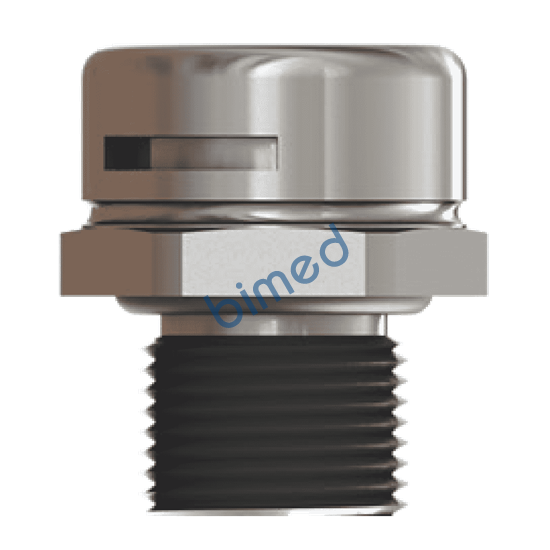

Вентиляционные заглушки металлические SBBVP-02L, M16x1,5 / TL=6,0mm / C
- Описание
Описание
• Balances pressure differences between inside and outside of enclosure.
• Prevents damages, such as condensation due to pressure differences.
• Membrane properties: hydrophobic, oleophobic.
• For industrial applications in harsh environments.
Products specifications
| Material | Vent. Plug | Stainless steel, Aluminium | |
| Vent. Membran | Acrylic co-polymer on nylon-support | ||
| O-Ring | NBR | ||
| Ingress Protection Rating | IP 68 / IP 67 (for water intrusion pressure 0.1 bar) | ||
| Operating Temperature | Permanent | Intermittent | |
| -20 °C to +100 °C | -30 °C to +150 °C | ||
| Thread Type | |||
| Metric EN 60423 | |||
| PG DIN 40430 | |||
| Other thread types also available upon request. | |||
| Accessories | Lock nuts | ||
| Gaskets ( Washers ) | |||
| Remarks | We recommend the use of lock nuts and gaskets to ensure IP rating for — | ||
| rough surfaces or through holes. | |||
| O-ring available all products except D-type M40. | |||
| Accessories must be ordered separately. | |||
| Some approvals do not cover all sizes. | |||
| Size | M16x1,5 | ||
| Average Air Flow for ΔP = 70 mbar/1 psi (l/h) | 16 | ||
| Water Intrusion Pressure (mbar) | 0,9 bar | ||

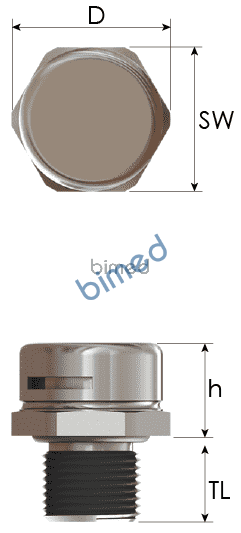

| Outer | Thread Length (TL) | 6,0 mm | |
| Ø (D) | 20,0 mm | ||
| Spanner Width | 18 mm | ||
| Height (h) | 16,0 mm | ||
| Design Type | C | ||
| Part Number | SBBVP-02L | ||
