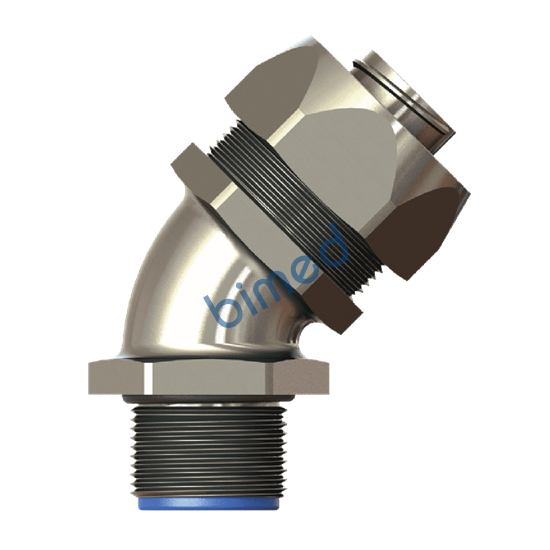

45° Фитинги для герметичных кабелепроводов с наружной резьбой, Латунь BBFM-06 45, M40x1,5 / 1 1/4″ / TL=16,0mm
- Описание
Описание
• Fittings for Sealtite conduits.
• For metal machines and housings.
• For standard industrial applications in harsh environments.
• Great corrosion protection.
• Easy assembly.
• High quality strain relief and sealing, reliable performance for standard industrial applications.
Products specifications
| Material | Body , Cap | Brass Nickel plated | |
| Ferrule | Brass Nickel plated or Steel Zinc plated | ||
| Prot.Bushing | Polyamide 6 V2 Metric PG NPT | ||
| Seal Ring | Polyamide 6 V2 | ||
| O-Ring | NBR | ||
| Ingress Protection Rating | |||
| IP 65 | |||
| IP 66 | |||
| Operating Temperature | Permanent | ||
| -45 °C to +105 °C | |||
| Cable Type | Non Armoured | ||
| Thread Type | |||
| Metric EN 60423 | |||
| PG DIN 40430 | |||
| NPT ANSI B1.20.1 | |||
| Accessories | Lock nuts | ||
| Remarks | Also available in Stainless Steel | ||
| O-ring available in Metric and PG threads | |||
| Accessories must be ordered separately. | |||

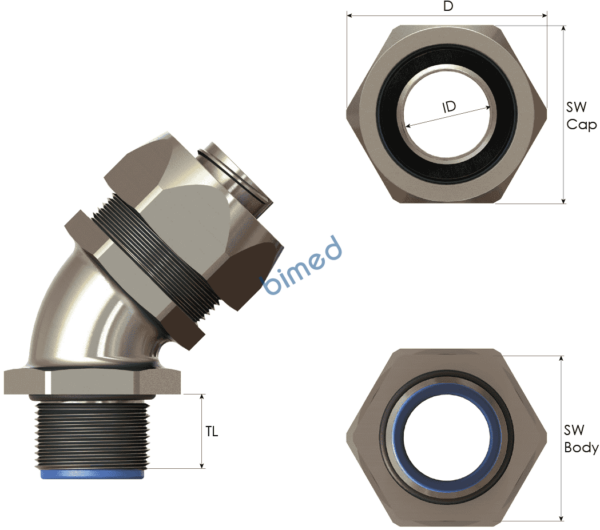

| Outer | Thread Size (Male) | M40x1,5 | |
| Thread Length (TL) | 16,0 mm | ||
| Ø (D) | 60,0 mm | ||
| For Sealtite Nominal Size | 1 1/4" | ||
| Spanner Width | Cap | 54 mm | |
| Body | 51 mm | ||
| Inner Ø (ID) | 31,8 mm | ||
| Part Number | BBFM-06 45 | ||
